MODULAR INVERTER SYSTEMS

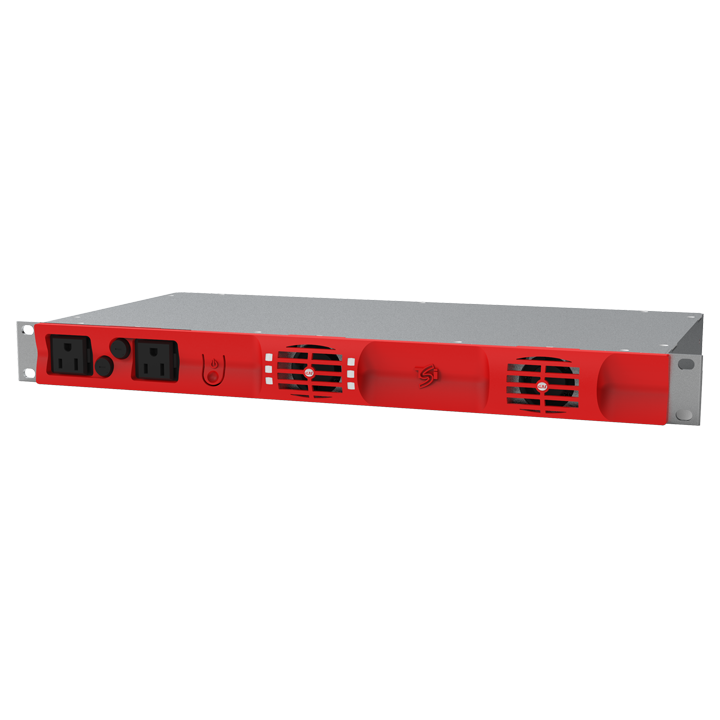

Y-One 500 48/120
The Y-One 500 offers a sleek, efficient solution for converting 48 Vdc to 120 Vac in a compact 1U format, optimizing space and enhancing convenience for diverse applications.
400 W
- System Details & Benefits
- Applications
- Success Stories
- Resources/videos
What is the Y-One 500?
The Y-One 500 modular inverter system is a standalone unit designed to convert 48 Vdc to a pure 120 Vac sine wave, known for its reliability over many years of use.
This modular inverter features a low DC ripple voltage to minimize disturbances on DC loads and batteries. Available in both UL-certified and non-certified versions, it also offers a variant with an additional AC input to significantly enhance conversion efficiency under normal conditions, providing a flexible and efficient power solution.
Key Features
- Only 1U (1.75”) high, for perfect use in small spaces.
- UL-certified.
- Offers high reliability and easy maintenance for improved business operations.
- Compact design for ease of use and operation on-site.
- No disturbances to DC loads and batteries.
Technical Data
| In: DC voltage (input range) | 48 Vdc (40-60) |
| Out: AC voltage | 120 Vac |
| Output power | 500 VA / 400 W |
| Efficiency: DC/AC | 85.5% |
| Temperature | -20 to 65°C |
| Dimension | 1U x 485 mm x 250 mm |
| Part number: UL certified | T351330111 |
| Part number: not UL certified | T351A30111 |
Multiple Versions
The Y-One 500 is also available with an additional AC input for increased conversion efficiency. If you’re interested in this model, please let us know when you contact us!
