MODULAR INVERTER SYSTEMS

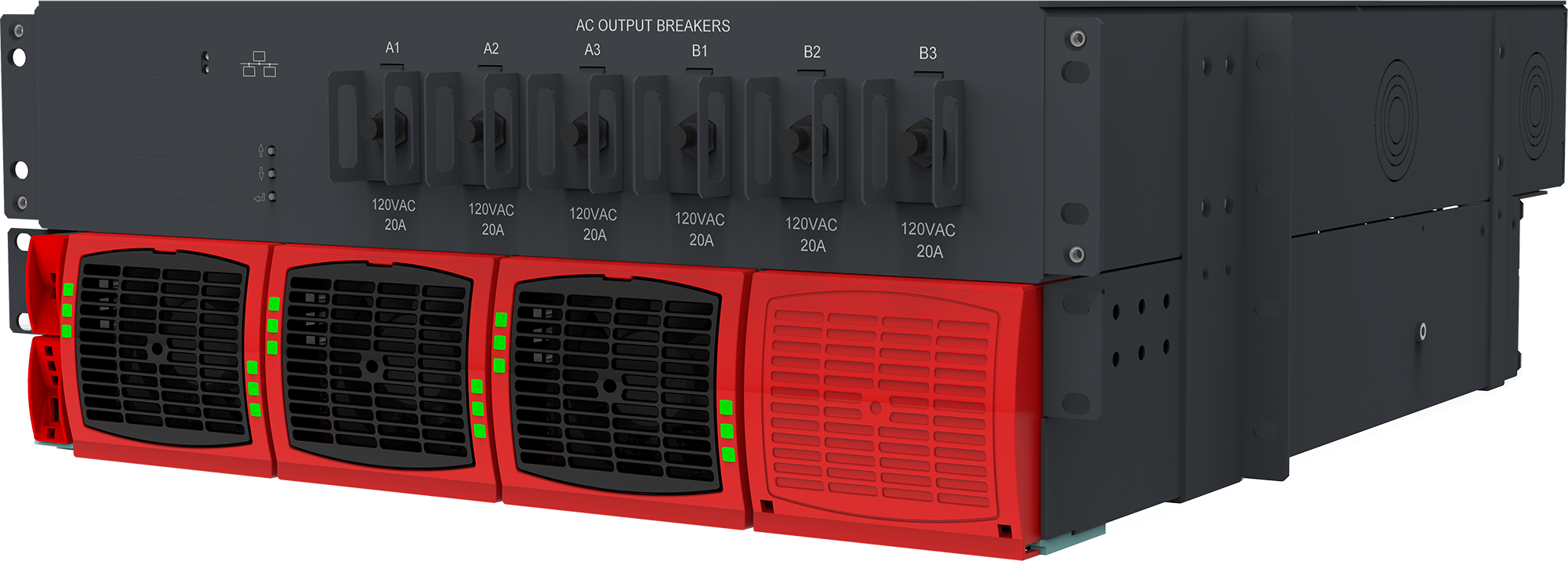

TSI Bravo ST 5000 125/120
Discover the TSI Bravo ST 5000 125/120, a compact, high-efficiency modular inverter system designed for secure, reliable AC power conversion. Perfect for businesses seeking a robust power solution within a minimal rack space.
4 kW
- System Details & Benefits
- Applications
- Success Stories
- Resources/videos
System Details and Benefits
What is the TSI Bravo ST 5000?
The TSI Bravo ST 5000 is a compact, high-availability standalone inverter designed for securing AC loads at 120 Vac from a 125 Vdc infrastructure.
This inverter system features an additional AC input for normal operations, achieving a high conversion efficiency of 95%, and includes an integrated bypass for direct grid power supply during system issues. The solution also offers hot-swappable modules for easy maintenance and scalability from 2.5 to 5kVA in a single-phase configuration, all within a space-saving 2U rack height.
Key Features
- Extra AC input for increased efficiency.
- Compact modular inverter system reaching only 2U (3.5”) high.
- Modularity from 2.5 to 5kVA power.
- Integrated bypass solution for easier system maintenance or fault detection resolution.
Technical data
| In: DC voltage (input range) | 125 Vdc (90 – 160) |
| In/Out: AC voltage (input range) | 120 Vac (104-138) |
| Output power | 5 kVA / 4 kW |
| Efficiency: DC/AC | 91% |
| Efficiency: AC/AC | 95% |
| Temperature | -20 to 65°C |
| Dimension | 176.5 mm x 443.3 mm x 549.28 mm |
| Part number | S32P35E0202S |
