Power Converter
PrismaBox 500

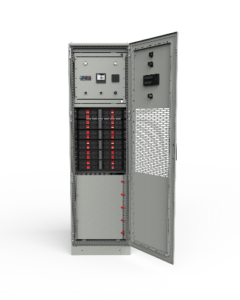

Prisma Storage is a modular power conversion system designed to help businesses control, optimize, and scale their stored energy. Available as a pre-assembled Power Conversion System or a customizable Power Conversion Kit, Prisma Storage gives you the flexibility to deploy a ready-to-use solution or tailor the system to your installation needs.
Prisma Storage is a modular power conversion system designed to help businesses control, optimize, and scale their stored energy. Available as a pre-assembled Power Conversion System or a customizable Power Conversion Kit, Prisma Storage gives you the flexibility to deploy a ready-to-use solution or tailor the system to your installation needs.
- System Details & Benefits
- Applications
- Success Stories
- Resources/videos

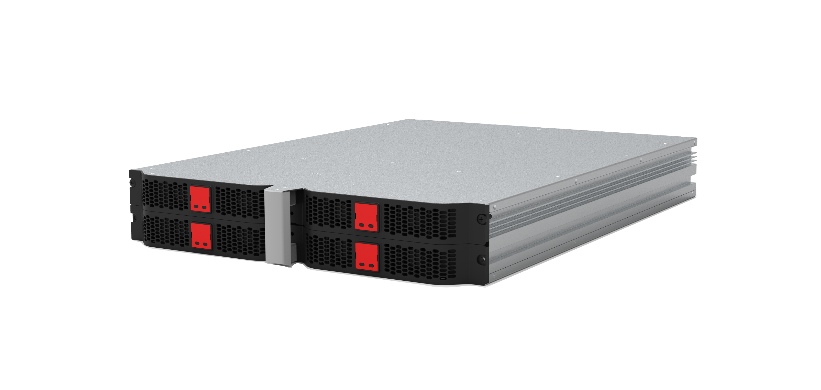

What is PrismaBox 500?
PrismaBox 500 is a modular bidirectional AC-DC power converter designed for storage and conversion applications in North American 277/480 Vac, 3-phase, 60 Hz environments.
Based on PCA (Port-Configurable Assembly) technology, the module provides one AC interface and one high-voltage DC interface at system level, supporting flexible integration into Prisma Storage PCS cabinets or Power Conversion Kit deployments.
PrismaBox 500 supports scalable system architecture through hot-swappable modular deployment, helping reduce maintenance downtime while supporting future system expansion. The converter operates with Inview X+ supervision for monitoring, control, alarms, and remote enable/disable functionality.
Key Features
- 50 kW at 277/480 Vac, 3-phase, 60 Hz
- High efficiency for AC-DC and DC-AC conversion
- Hot-swappable 2RU module for low MTTR
- Compact design with high power density
- 750 Vdc nominal storage interface
- Redundant Bus A/B modular synchronization
- Integrated supervision with Inview X+
Technical Data
| In/Out: DC voltage (range) | 750 Vdc (300 – 900) |
| In/Out: AC voltage (range) | 3 x 277/480 Vac |
| Output power | 50kW |
| Efficiency: DC/AC | 98.5% |
| Efficiency: AC/AC | 98.5% |
| Cooling type | Fan-forced cooling |
| Safety / interconnection |
UL 1741, UL 1741-SB and IEEE 1547 |
| MC / EMI |
FCC Part 15 Class A |
| Dimension | 493 x 692 x 88 mm (2RU module) |
| Catalog name | PrismaBox 500 – 1DC/1AC – 750/480 |
