Prisma Storage Power Conversion System (PCS)
Prisma Storage is a modular power conversion system designed to help businesses control, optimize, and scale their stored energy. Available as a pre-assembled Power Conversion System or a customizable Power Conversion Kit, Prisma Storage gives you the flexibility to deploy a ready-to-use solution or tailor the system to your installation needs.
Prisma Storage is a modular power conversion system designed to help businesses control, optimize, and scale their stored energy. Available as a pre-assembled Power Conversion System or a customizable Power Conversion Kit, Prisma Storage gives you the flexibility to deploy a ready-to-use solution or tailor the system to your installation needs.
3x480 Vac
50kW
27kg
- System Details & Benefits
- Applications
- Success Stories
- Resources/videos
What is Prisma Storage Power Conversion System (PCS)
Prisma Storage is a modular power conversion system built to help businesses get more value from stored energy. It supports applications such as renewable energy self-consumption, peak demand reduction, weak-grid or remote power stabilization, and energy market participation.

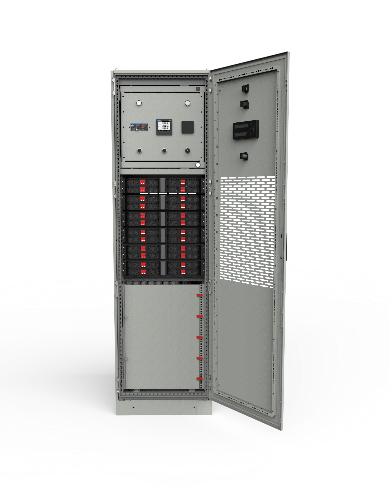

The system is available as either a standard pre-assembled cabinet or as a Power Conversion Kit for custom integration, making it easier to match the solution to specific installation requirements.

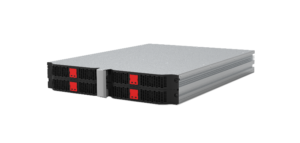

Each Prisma Storage system can integrate hot-swappable bidirectional modular power converters, helping simplify maintenance while supporting future growth
Key Features
- Scalable and modular
- Compatible with all storage technologies
- Compact and easy to install
- High efficiency for improved battery management
- Integrated supervision with Inview monitoring
- Flexible setup for on-grid, off-grid, or hybrid applications
Technical Data
| In/Out: DC voltage (range) | 750 Vdc (300 – 900) |
| In/Out: AC voltage (range) | 3x400Vac – 3x480Vac |
| Output power | 42.5kW at 50kW |
| Efficiency: DC/AC | 98.5% |
| Efficiency: AC/AC | 98.5% |
| Overload capacity | 150% for 15 seconds |
| DC Earth leakage protection |
Bender MRCDB423-D-1 |
| Anti-islanding decoupling relay |
ZIEHL UFR1001-E |
| Dimension | 600 x 800 x 2100 mm |
| Part number | A00055-V01 |
